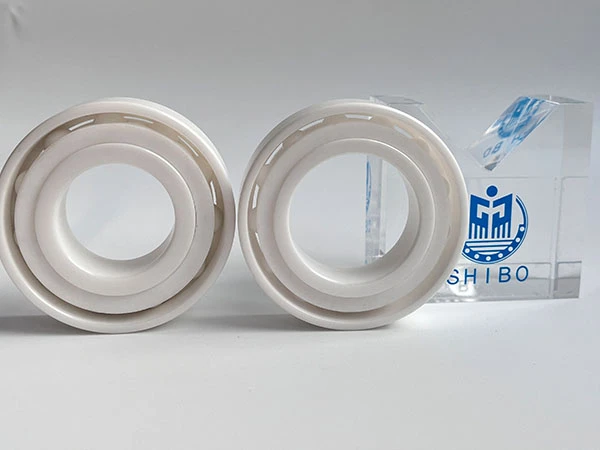

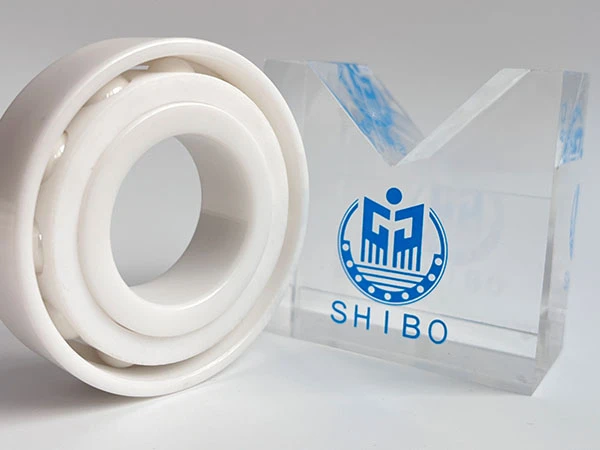

7000 7200 Series Angular Contact Ball Bearings

7000 7200 Series Angular Contact Ball Bearings

The 7000 and 7200 series angular contact ball bearings are engineered for high-speed, high-precision applications. Designed with a single-row angular contact configuration, these bearings excel in handling combined loads—both radial and axial—making them ideal for industries requiring accuracy and durability. Whether in machine tools, robotics, or precision instruments, these bearings provide consistent performance under demanding conditions.

Send Email Get Best Price

Details

7000 7200 Series Angular Contact Ball Bearings Details

When it comes to high-speed, high-precision machinery, every detail counts. The 7000 and 7200 Series Angular Contact Ball Bearings are designed to deliver unmatched reliability and performance, keeping your equipment running smoothly under demanding conditions.

7000 7200 Series Angular Contact Ball Bearings Parameters

Dimensions of 7000 7200 Series Angular Contact Ball Bearings

Column1	Column 2	Column 3	Column 4	Column 5	Column 6	Column 7	Column 8	Column 9	Column 10	Column 11	Column 12	Column 13
Model	Inner Diameter	Outer Diameter	Width	Central Economic	Sphere Diameter	Number of Pitches	Outer Trench	Outer Inner Diameter	Groove Curvature	Inner Trench	Inner and Outer Diameter	Groove Curvature
7000	10	26	8	18	4.762	7	22.77	21.3	2.49	13.23	14.9	2.44
7001	12	28	8	20.5	4.762	8	25.273	23.8	2.49	15.73	17.4	2.44
7002	15	32	9	23.5	4.762	9	28.27	26.6	2.49	18.73	20.4	2.45
7003	17	35	10	26	4.762	10	30.8	29.1	2.49	21.238	22.9	2.44
7004	20	42	12	31	6.35	9	37.363	35.1	3.32	24.65	26.9	3.26
7005	25	47	12	36	6.35	10	42.363	40.1	3.32	29.65	31.9	3.26
7006	30	55	13	43	7.144	11	50.157	47.7	3.74	35.856	38.4	3.68
7007	35	62	14	48.5	7.938	11	56.451	53.67	4.17	40.562	43.34	4.09
7008	40	68	15	54	7.938	12	61.951	59.17	4.17	46.062	48.84	4.09
7009	45	75	16	60	8.731	12	68.746	65.7	4.58	51.269	54.32	4.469
7010	50	80	16	65	8.73	13	73.758	70.7	4.58	56.269	58.88	4.5
7011	55	90	18	72.5	11.1125	11	83.631	79.74	5.82	61.388	65.28	5.72
7012	60	95	18	78.5	11.112	12	89.6125	86.3	5.83	67.387	70.8	5.72
7013	65	100	18	82.5	11.112	13	93.61	89.5	5.72	71.38	75.4	5.72
7014	70	110	20	90	12	13	102	98.5	6.18	78	81.8	6.18
7015	75	115	20	95	12	14	107	102.9	6.18	83	87.1	6.18
7016	80	125	22	102.5	13.494	13	115.9	111.3	7.08	89	93.5	6.95
7017	85	130	22	108.5	13.494	14	122.1	116.6	6.94	95.1	100.4	6.94
7018	90	140	24	115	15.081	13	130.08	125.8	7.76	99.91	104.6	7.76
7019	95	145	24	120	15.081	14	135.08	129	7.76	104.9	110.9	7.76
7020	100	150	24	125	15.081	15	140.08	134	7.76	109.9	115.9	7.76
7021	105	160	26	132.5	15.875	16	147.87	141.7	7.91	117.12	123.2	7.91
7022	110	170	28	140	17.463	15	157.46	151.4	8.99	122.53	128.5	8.99
7023
7200	10	30	9	20.5	4.672	8	25.27	23.8	2.49	15.738	17.4	2.44
7201	12	32	10	22.2	5.953	7	28.164	26.1	3.12	16.247	18.3	3.06
7202	15	35	11	25.5	5.953	8	31.453	29.4	3.12	19.547	21.6	3.06
7203	17	40	12	29	6.747	8	35.758	33.4	3.53	22.253	24.6	3.46
7204	20	47	14	34.5	7.938	8	42.451	39.7	4.16	26.56	29.3	4.05
7205	25	52	15	39	7.938	9	46.951	44.2	4.16	31.062	33.8	4.08
7206	30	62	16	46.5	9.525	9	56.038	52.2	5	36.975	40.8	4.91
7207	35	72	17	53.5	11.1125	9	64.625	60.2	5.82	42.388	46.8	5.7
7208	40	80	18	60	12	9	72.013	67.2	6.29	48	52.8	6.17
7209	45	85	19	66	12	10	78.015	73.2	6.29	54	58.8	6.18
7210	50	90	20	70	12.7	10	82.715	77.6	6.67	57.3	62.4	6.54
7211	55	100	21	77.5	14.288	10	91.806	86.1	7.5	63.21	68.9	7.35
7212	60	110	22	85	15.081	10	100.1	94.1	7.76	69.92	76	7.76
7213	65	120	23	92.5	15.081	11	107.581	102.3	7.76	77.419	82.7	7.76
7214	70	125	24	97.5	15.875	11	113.375	107.8	8.17	81.625	87.2	8.17
7215	75	130	25	102.5	16.669	11	119.169	113.4	8.58	85.831	91.6	8.58
7216	80	140	26	110	17.463	11	127.426	121.4	8.99	92.5375	98.6	8.99
7217	85	150	28	117.5	19.05	10	136.5	129.8	9.81	98.4	105	9.81
7218	90	160	30	125	20.638	10	145.6	138.3	10.62	104.3	111.5	10.62
7219	95	170	32	133	22.225	10	155.225	147.5	11.45	110.775	118.5	11.45
7220	100	180	34	140	23.813	10	163.813	156.6	12.26	116.18	123.3	12.26
7221	105	190	36	148	25.4	10	173.4			122.6	131.5
7222	110	200	38	155	26.988	10	181.99	174.5	13.89	128.01	135.5	13.89

Why These Bearings Are the Choice of Professionals

Handle More Load, Last Longer

With a specialized angular contact design, these bearings handle both radial and axial loads efficiently.

The 7200 series takes it a step further, offering higher axial load capacity for heavier-duty applications.

Smooth, High-Speed Performance

Precision-engineered to minimize vibration and noise, even at high rotational speeds.

Perfect for CNC machines, high-speed spindles, robotics, and other equipment where accuracy is critical.

Built to Withstand Wear

Made from premium chrome steel or stainless steel options for corrosion resistance.

Optimized cage design reduces friction, heat, and maintenance downtime.

Flexible Installation & Pairing

Standardized dimensions for easy integration.

Can be arranged back-to-back or face-to-face for dual-direction axial load support.

Industries That Rely on 7000/7200 Bearings

CNC & Precision Machine Tools

Robotics & Automation

Aerospace & Defense Equipment

Medical Devices & Laboratory Instruments

High-Speed Motors & Spindles

Maximize Your Machinery’s Potential

Investing in 7000 or 7200 series angular contact ball bearings is not just about replacing parts—it’s about ensuring precision, reliability, and long-term performance for your machines. Proper pairing and load arrangement can dramatically increase service life, reduce maintenance, and keep your operations running at peak efficiency.

Pro Tip: For dual-direction axial loads, consider back-to-back or face-to-face arrangements to ensure optimal bearing life and performance.
