1600 Series Deep Groove Ball Bearing Dimensions

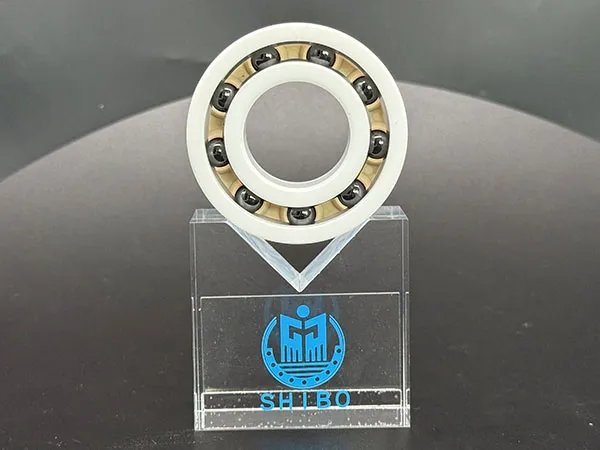

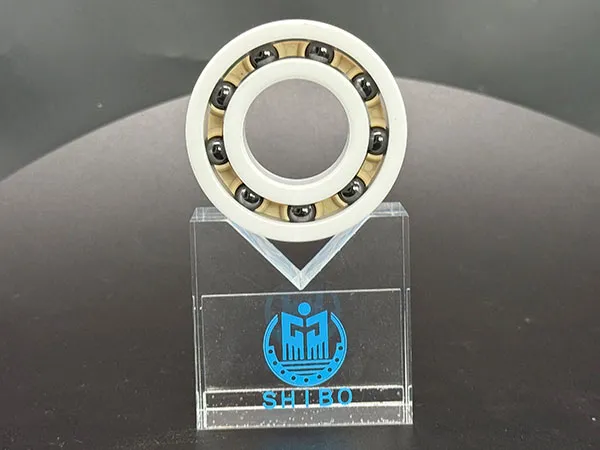

1600 Series Deep Groove Ball Bearing

Reliable bearings are essential for smooth machinery operation and long service life. The 1600 Series offers durability, low friction, and flexibility, reducing downtime and operational costs while ensuring high performance in demanding industrial environments.

Send Email Get Best Price

Details

1600 Series Deep Groove Ball Bearing Overview

The 1600 series deep groove ball bearings are engineered for high efficiency and long-lasting performance across a wide range of applications. Their robust design ensures smooth rotation, low friction, and the ability to withstand both radial and axial loads, making them ideal for electric motors, pumps, gearboxes, and other precision machinery.

1600 Series Deep Groove Ball Bearing Parameters

1600 Series Deep Groove Ball Bearing Dimensions
1600 Series Deep Groove Ball Bearing Dimensions
Column 1	Column 2	Column 3	Column 4	Column 5	Column 6	Column 7	Column 8	Column 9	Column 10	Column 11	Column 12	Column 13
Model	Inner Diameter	Outer Diameter	Width	Central Diameter	Sphere Diameter	Number of Balls	Outer Trench	Outer Inner Diameter	Groove Curvature	Inner Trench	Inner and Outer Diameter	Groove Curvature
16000	10	26	7	18	4.762	7	22.77	21.3	2.49	13.23	14.9	2.44
16001	12	28	7	20.5	4.7625	8	25.273	23.8	2.45	15.73	17.4	2.45
16002	15	32	8	23.5	4.7625	9	28.27	26.6	2.45	18.73	20.4	2.45
16003	17	35	8	26	4.7625	10	30.76	29.1	2.45	21.23	22.9	2.45
16004	20	42	8	31	5.556	10	36.55	34.88	2.45	25.44	27.1	2.45
16005	25	47	8	36	5.556	11	41.55	39.6	2.86	30.44	32.4	2.45
16006	30	55	9	42.5	5.953	11	48.45	46.36	3.06	36.54	38.6	3.06
16007	35	62	9	48.5	5.953	12	54.45	52.3	3.06	42.54	44.6	3.06
16008	40	68	9	54	6.35	14	60.35	58.4	3.27	47.65	49.5	3.27
16009	45	75	10	60	7.144	15	67.144	65	3.58	52.856	55	3.58
16010	50	80	10	65	7.144	16	72.144	70	3.67	57.856	60	3.67
16011	55	90	11	72.5	7.938	16
16012	60	95	11	77.5	7.938	17
16013	65	100	11	82.5	7.938	18
16014	70	110	13	90	9.525	17
16015	75	115	13	95	9.525	18
16016	80	125	14	102.5	10.319
16017	85	130	14	107.5	10.319
16018	90	140	16	115	10.319	19	125.319	122.7	5.3	104.68	107.2	5.3
16019	95	145	16	120
16020	100	150	16	125
16021	105	160	18	132.55	13.494	17	145.994	141.3	6.95	119.006	123.7	6.95
16022	110	170	19	140

Key Features

Durable Construction

Crafted from premium bearing steel, 1600 Series bearings offer excellent wear resistance and structural integrity, ensuring consistent performance even under heavy loads.

Versatile Load Capacity

Designed to handle both radial and axial loads efficiently, the deep groove design optimizes load distribution for extended bearing life.

Smooth, Low-Friction Operation

Precision steel balls and raceways minimize friction, reduce heat generation, and improve overall operational efficiency—perfect for high-speed applications.

Reliable Sealing Options
Available with rubber or metal shields to resist dust, dirt, and moisture, keeping bearings protected and maintenance requirements low.

Wide Range of Sizes

Multiple sizes accommodate different shaft diameters and housings, providing flexibility for replacement or new machinery designs.
